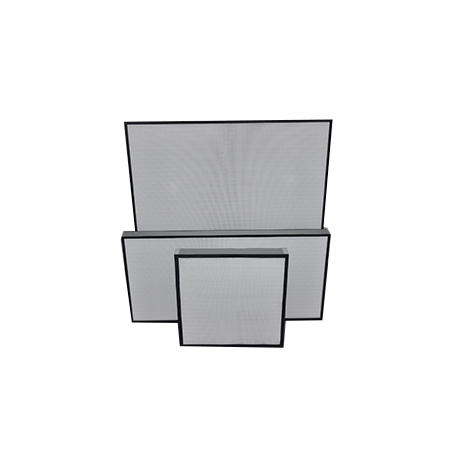

無隔板高效過濾器
| H14 Mini-Pleat HEPA Filter? ? H14ノンセバレータ型HEPAフィルター? ? H14無隔板高效過濾器 | ||||||||||||
| Number | Model | L | W | H | Area | Airflow.pressure drop | Efficiency | |||||
| 序號 | 型號 | 長 | 寬 | 高 | 濾紙面積 | 不同風速時的風量.初阻力(m3/h.Pa) | 效率等級 | |||||
| mm | mm | mm | m2 | 0.45m/s | Pa | 0.75m/s | Pa | 0.9m/s | Pa | |||
| 1 | H1432032069 | 870 | 320 | 69 | 7.3 | 451 | 120 | 752 | 185 | H14 | ||
| 2 | H1448448469 | 484 | 484 | 69 | 6.1 | 379 | 120 | 632 | 185 | H14 | ||
| 3 | H1457057069 | 570 | 570 | 69 | 8.5 | 526 | 120 | 877 | 185 | H14 | ||
| 4 | H1463063069 | 630 | 630 | 69 | 10.4 | 643 | 120 | 1072 | 185 | H14 | ||
| 5 | H1491561069 | 915 | 610 | 69 | 14.6 | 904 | 120 | 1507 | 185 | H14 | ||
| 6 | H1496848469 | 968 | 484 | 69 | 12.2 | 759 | 120 | 1265 | 185 | H14 | ||
| 7 | H14117057069 | 1170 | 570 | 69 | 17.4 | 1080 | 120 | 1801 | 185 | H14 | ||
| 8 | H141170117069 | 1170 | 1170 | 69 | 35.7 | 2218 | 120 | 3696 | 185 | H14 | ||
| 9 | H14122061069 | 1220 | 610 | 69 | 19.4 | 1206 | 120 | 2009 | 185 | H14 | ||
| 10 | H1432032080 | 320 | 320 | 80 | 3.1 | 166 | 105 | 276 | 165 | 332 | 245 | H14 |
| 11 | H1448448480 | 484 | 484 | 80 | 7.1 | 379 | 105 | 632 | 165 | 759 | 245 | H14 |
| 12 | H1457057080 | 570 | 570 | 80 | 9.8 | 526 | 105 | 877 | 165 | 1053 | 245 | H14 |
| 13 | H1463063080 | 630 | 630 | 80 | 12.0 | 643 | 105 | 1072 | 165 | 1286 | 245 | H14 |
| 14 | H1491561080 | 915 | 610 | 80 | 16.9 | 904 | 105 | 1507 | 165 | 1808 | 245 | H14 |
| 15 | H1496848480 | 968 | 484 | 80 | 14.2 | 759 | 105 | 1265 | 165 | 1518 | 245 | H14 |
| 16 | H14117057080 | 1170 | 570 | 80 | 20.2 | 1080 | 105 | 1801 | 165 | 2161 | 245 | H14 |
| 17 | H141170117080 | 1170 | 1170 | 80 | 41.4 | 2218 | 105 | 3696 | 165 | 4435 | 245 | H14 |
| 18 | H14122061080 | 1220 | 610 | 80 | 22.5 | 1206 | 105 | 2009 | 165 | 2411 | 245 | H14 |
| 19 | H1432032093 | 320 | 320 | 93 | 3.6 | 166 | 85 | 276 | 140 | 332 | 215 | H14 |
| 20 | H1448448493 | 484 | 484 | 93 | 8.2 | 379 | 85 | 632 | 140 | 759 | 215 | H14 |
| 21 | H1457057093 | 570 | 570 | 93 | 11.4 | 526 | 85 | 877 | 140 | 1053 | 215 | H14 |
| 22 | H1463063093 | 630 | 630 | 93 | 14.0 | 643 | 85 | 1072 | 140 | 1286 | 215 | H14 |
| 23 | H1491561093 | 915 | 610 | 93 | 19.6 | 904 | 85 | 1507 | 140 | 1808 | 215 | H14 |
| 24 | H1496848493 | 968 | 484 | 93 | 16.5 | 759 | 85 | 1265 | 140 | 1518 | 215 | H14 |
| 25 | H14117057093 | 1170 | 570 | 93 | 23.4 | 1080 | 85 | 1801 | 140 | 2161 | 215 | H14 |
| 26 | H141170117093 | 1170 | 1170 | 93 | 48.1 | 2218 | 85 | 3696 | 140 | 4435 | 215 | H14 |
| 27 | H14122061093 | 1220 | 610 | 93 | 26.2 | 1206 | 85 | 2009 | 140 | 2411 | 215 | H14 |
| 28 | H14320320110 | 320 | 320 | 110 | 4.3 | 166 | 70 | 276 | 110 | 332 | 135 | H14 |
| 29 | H14484484110 | 484 | 484 | 110 | 9.7 | 379 | 70 | 632 | 110 | 759 | 135 | H14 |
| 30 | H14570570110 | 570 | 570 | 110 | 13.5 | 526 | 70 | 877 | 110 | 1053 | 135 | H14 |
| 31 | H14630630110 | 630 | 630 | 110 | 16.5 | 643 | 70 | 1072 | 110 | 1286 | 135 | H14 |
| 32 | H14915610110 | 915 | 610 | 110 | 23.2 | 904 | 70 | 1507 | 110 | 1808 | 135 | H14 |
| 33 | H14968484110 | 968 | 484 | 110 | 19.5 | 759 | 70 | 1265 | 110 | 1518 | 135 | H14 |
| 34 | H141170570110 | 1170 | 570 | 110 | 27.7 | 1080 | 70 | 1801 | 110 | 2161 | 135 | H14 |
| 35 | H1411701170110 | 1170 | 1170 | 110 | 56.9 | 2218 | 70 | 3696 | 110 | 4435 | 135 | H14 |
| 36 | H141220610110 | 1220 | 610 | 110 | 30.9 | 1206 | 70 | 2009 | 110 | 2411 | 135 | H14 |
性能說明
外框：鋁型材，表面氧化
濾料分隔：熱熔膠
濾料:抗水型玻璃纖維濾紙
密封膠：聚氨酯
密封墊：EVA
保護網：鋼網噴塑,白色,進出風面均有
阻力與風量近似呈線性關系。阻力最大偏差范圍：±10%
過濾效率：≥99.995%at MPPS @0.45m/s
≥99.999%at 0.3um @0.45m/s
出廠前可逐臺效率檢測，符合現行國家規范
MPPS=最易穿透粒徑
連續運行溫度 ≤70℃
耐濕性 ≤100%RH
主要應用：
潔凈室的末端送風口，FFU，潔凈設備
